Korina, Inc.

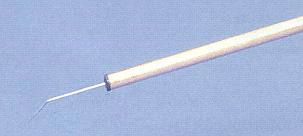

Replacement Probe Tips

Tungsten







Darkbox



Part Number
Description
PT-06
Probe tip tungsten , straight , 0.6 µ , 1 box of 25
PT-12
Probe tip tungsten , straight , 1.2 µ , 1 box of 25
PT-24
Probe tip tungsten , straight , 2.4µ , 1 box of 25
PT-120
Probe tip tungsten , straight , 12 µ , 1 box of 25
PT-250
Probe tip tungsten , straight , 25 µ , 1 box of 25
PT-06/4
Probe tip tungsten , 45° bend , 0.6 µ , 1 box of 25
PT-12/4
Probe tip tungsten , 45° bend , 1.2 µ , 1 box of 25
PT-24/4
Probe tip tungsten , 45° bend , 2.4 µ , 1 box of 25
PT-120/4
Probe tip tungsten , 45° bend , 12 µ , 1 box of 25
PT-250/4
Probe tip tungsten , 45° bend , 25 µ , 1 box of 25
PT-70
Probe tip tungsten catwisker , 0.007 µ , 1 box of 25

All tips are 20-miol shank and 1" length.



          OTHER MATERIALS

     • Tungsten: Industry-standard for reliability
     • Beryllium Copper: When improved resistivity is required
     • Osmium Tipped: For high wear-resistance and long life
     • Tungsten Carbide: For dimensional stability at high temparatures
     • Palladium Alloys: For your most sensitive applications
     • Custom Composites: To your individual specifications



          DIMENSIONAL DATA

     • Diameters:  From .010" with tolerance of ± .0002"
     • Taper Angles:From 5°  with tolerance of  ± 0.5°
     • Tip-RADII:From large spherical to "dead Sharp" ± .0002

    Government EDU discounts available. Please contact us for prices
